hash code come from
https://briansharpe.wordpress.com/2011/11/15/a-fast-and-simple-32bit-floating-point-hash-function/
https://iquilezles.org/www/articles/texturerepetition/texturerepetition.htm?fbclid=IwAR1DP44yF51aAJZCZizV1v1GfTDciW_XfOYokIxtybMmCWGeKcQn_v-Pxvo
https://qiita.com/yuji_yasuhara/items/158bab01cfff3c39214b
https://drive.google.com/file/d/1QecekuuyWgw68HU9tg6ENfrCTCVIjm6l/view
*/
Unity 절차전 랜덤 텍스처링
https://blog.unity.com/kr/technology/procedural-stochastic-texturing-in-unity
Shader "UnTilerable" { Properties { _MainTex("RGB 01", 2D) = "white" {} } SubShader { Tags { "RenderPipeline" = "UniversalPipeline" "RenderType" = "Opaque" "Queue" = "Geometry" } Pass { Name "Universal Forward" Tags {"LightMode" = "UniversalForward"} HLSLPROGRAM #pragma prefer_hlslcc gles #pragma exclude_renderers d3d11_9x #pragma vertex vert #pragma fragment frag #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl" struct VertexInput { float4 vertex : POSITION; float2 uv : TEXCOORD0; }; struct VertexOutput { float4 vertex : SV_POSITION; float2 uv : TEXCOORD0; float2 uv2 : TEXCOORD1; }; float4 _MainTex_ST; //Texture2D _MainTex; //SamplerState sampler_MainTex; sampler2D _MainTex; VertexOutput vert(VertexInput v) { VertexOutput o; o.vertex = TransformObjectToHClip(v.vertex.xyz); o.uv = v.uv.xy * _MainTex_ST.xy + _MainTex_ST.zw; return o; } /* float4 hash4(in float2 v) { float4 p = float4(v * float4x2(127.1, 311.7, 269.5, 183.3, 113.5, 271.9, 246.1, 124.6)); return frac(sin(p) * 43758.5453123); } float4 hash4(in float3 v) { float4 p = float4(v * float4x3{127.1, 311.7, 74.7, 269.5, 183.3, 246.1, 113.5, 271.9, 124.6, 271.9, 269.5, 311.7}); return frac(sin(p) * 43758.5453123); } */ float4 hash4fast(float2 gridcell) { const float2 OFFSET = float2(26.0, 161.0); const float DOMAIN = 71.0; const float SOMELARGEFIXED = 951.135664; float4 P = float4(gridcell.xy, gridcell.xy + 1); P = frac(P * (1 / DOMAIN)) * DOMAIN; P += OFFSET.xyxy; P *= P; return frac(P.xzxz * P.yyww * (1 / SOMELARGEFIXED)); } inline float3 textureNoTile(sampler2D samp, in float2 uv) { float2 iuv = float2(floor(uv)); float2 fuv = frac(uv); // generate per-tile transform float4 ofa = hash4fast(iuv + float2(0, 0)); float4 ofb = hash4fast(iuv + float2(1, 0)); float4 ofc = hash4fast(iuv + float2(0, 1)); float4 ofd = hash4fast(iuv + float2(1, 1)); float2 dx = ddx(uv); float2 dy = ddy(uv); // transform per-tile uvs ofa.zw = sign(ofa.zw - 0.5); ofb.zw = sign(ofb.zw - 0.5); ofc.zw = sign(ofc.zw - 0.5); ofd.zw = sign(ofd.zw - 0.5); // uv's, and derivatives (for correct mipmapping) float2 uva = uv * ofa.zw + ofa.xy, ddxa = dx * ofa.zw, ddya = dy * ofa.zw; float2 uvb = uv * ofb.zw + ofb.xy, ddxb = dx * ofb.zw, ddyb = dy * ofb.zw; float2 uvc = uv * ofc.zw + ofc.xy, ddxc = dx * ofc.zw, ddyc = dy * ofc.zw; float2 uvd = uv * ofd.zw + ofd.xy, ddxd = dx * ofd.zw, ddyd = dy * ofd.zw; // fetch and blend float2 b = smoothstep(0.25, 0.75, fuv); float3 mix01 = lerp(tex2Dgrad(samp, uva, ddxa, ddya), tex2Dgrad(samp, uvb, ddxb, ddyb), b.x); float3 mix02 = lerp(tex2Dgrad(samp, uvc, ddxc, ddyc), tex2Dgrad(samp, uvd, ddxd, ddyd), b.x); float3 color = lerp(mix01, mix02, b.y); return color; } half4 frag(VertexOutput i) : SV_Target { half3 color = textureNoTile(_MainTex, i.uv); return half4(color.rgb, 1); } ENDHLSL } } } |

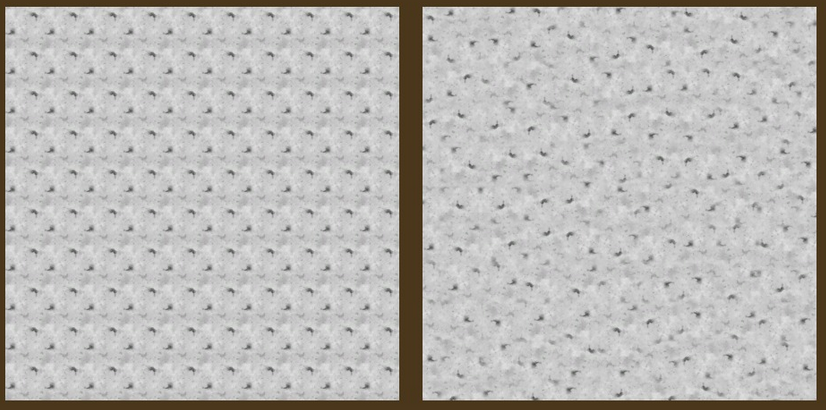

타일링 수에 따라 위와같이 UV타일이 제대로 나오지 않는 부분있음.
