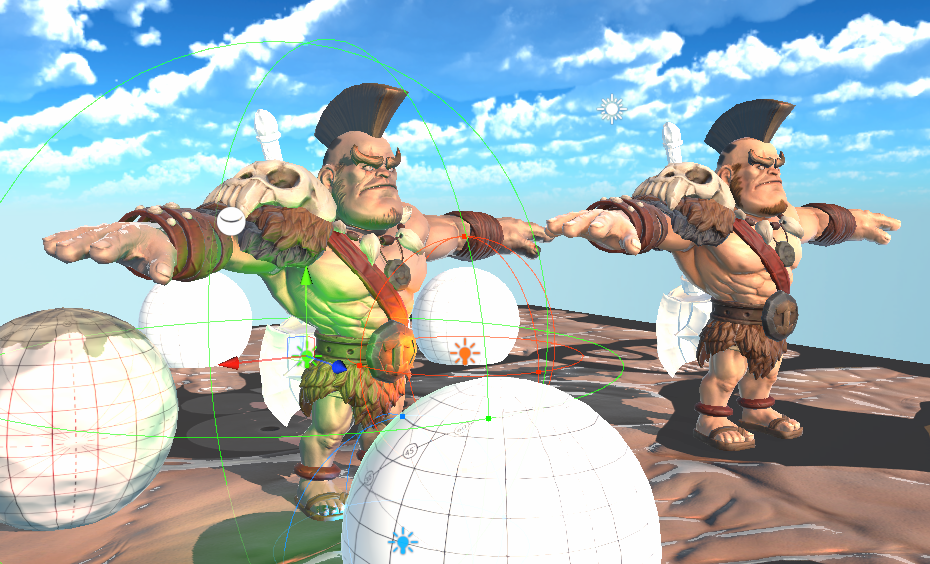

URP BlinnPhong Default Character Shader

character shader base form based on mobile platform. 2021.1.6f1

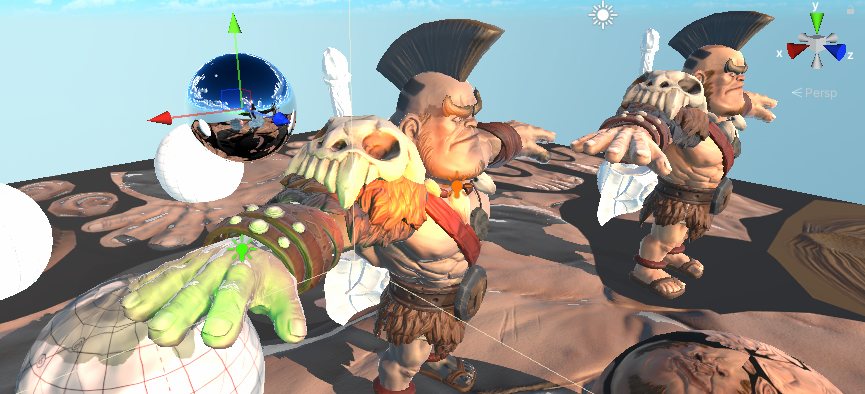

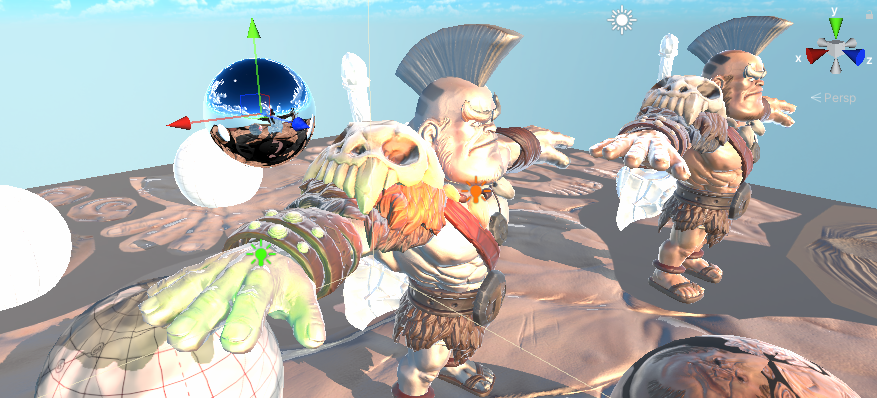

support cascade. thanks for madumpa !!!. : blog posting below link.
캐스캐이드가 작동하지 않기 때문에 아래 링크처럼 픽셀에서 shadowcoord를 처리해주면 제대로 작동
https://blog.naver.com/PostView.naver?blogId=mnpshino&logNo=222154224409&navType=tl

URP 셰이더 코딩 튜토리얼 A/S : 케스케이드 섀도우가 이상해요!

- support cascade shadow
- support single light pass
- does not support SSAO
- lighting model : BlinnPhong

include only forward pass, shadow pass, depth pass.

SSAO를 적용하는건 simpleLit이나 다른 코드에서 가져와 넣으면 작동한다.
추가 라이트의 BRDF와 하이라이트는 일단 귀찮아서 그냥 가져다 처리. 이 부분을 커스텀 하기 따라서 좀 더 다양한 느낌이 가능할듯

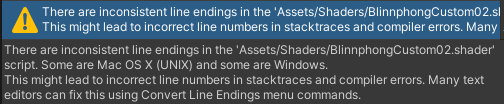

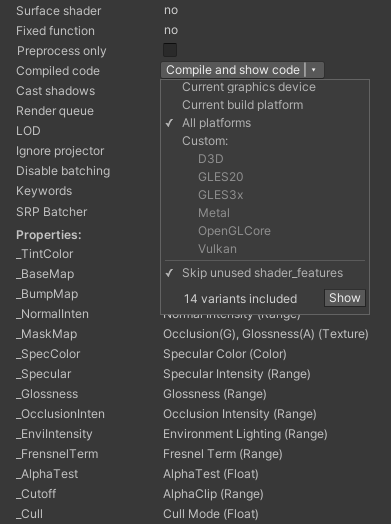

몇가지 compile 에러가 뜨는데 추후 수정예정.

정확하게 구현한건 아니고 기능적 구현에 우선한 것이라 참고용으로만 쓸것~

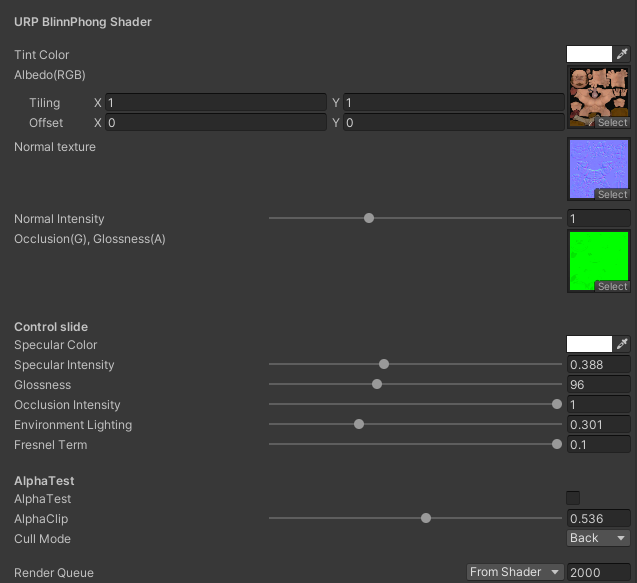

Shader "URPBlinnphongCustom" { Properties   {        [Header(URP BlinnPhong Shader)]    [Space(20)]    _TintColor ("Tint Color", color) = (1,1,1,1)    _BaseMap("Albedo(RGB)", 2D) = "white" {}    [Normal][NoScaleOffset]_BumpMap("Normal texture", 2D) = "white" {}    _NormalInten("Normal Intensity", Range(0,3))  = 1    [NoScaleOffset]_MaskMap("Occlusion(G), Glossness(A)", 2D) = "white" {}         [Space(5)][Header(Control slide)]    [Space(5)]    _SpecColor("Specular Color", color) = (1,1,1,1)    _Specular("Specular Intensity", Range(0, 1)) = 1    _Glossness("Glossness", Range(5, 50)) = 1        _OcclusionInten("Occlusion Intensity", Range(0,1)) = 1    _EnviIntensity("Environment Lighting", Range(0,1)) = 1    _FrensnelTerm("Fresnel Term", Range(0.05, 0.1)) = 1 [Space(5)][Header(AlphaTest)] [Space(5)] [Toggle] _AlphaTest("AlphaTest", float) = 0 _Cutoff("AlphaClip", Range(0,1)) = 0.5 [Enum(UnityEngine.Rendering.CullMode)] _Cull("Cull Mode", Float) = 1     }    SubShader         {          Tags         {         "RenderPipeline"="UniversalPipeline"         "RenderType"="Opaque"                   "Queue"="Geometry"          }    LOD 100        Cull[_Cull]      Pass      {         Name "Universal Forward"         Tags {"LightMode" = "UniversalForward"}         HLSLPROGRAM           #pragma prefer_hlslcc gles  #pragma exclude_renderers gles gles3 glcore  #pragma exclude_renderers d3d11_9x  #pragma target 3.0   //AlphaTest  #pragma shader_feature_local_fragment _ALPHATEST_ON          // Universal Pipeline keywords #pragma multi_compile _ _MAIN_LIGHT_SHADOWS  #pragma multi_compile _ _MAIN_LIGHT_SHADOWS_CASCADE #pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS         #pragma multi_compile_fragment _ _SHADOWS_SOFT          // Unity defined keywords #pragma multi_compile_fog #pragma vertex vert #pragma fragment frag #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"               CBUFFER_START(UnityPerMaterial) float4 _BaseMap_ST; float _Specular, _Glossness, _OcclusionInten, _EnviIntensity; half _Cutoff, _NormalInten, _FrensnelTerm; half4 _TintColor, _SpecColor; CBUFFER_END       Texture2D _BaseMap, _BumpMap, _MaskMap; SamplerState sampler_BaseMap;         struct VertexInput           {             float4 positionOS : POSITION;             float3 normalOS    : NORMAL;             float2 uv         : TEXCOORD0;             float4 tangentOS   : TANGENT;           };         struct VertexOutput           {             float4 positionCS  : SV_POSITION;             float3 normalWS    : NORMAL;                         float2 uv           : TEXCOORD0;             float3 tangentWS    : TEXCOORD1;             float3 bitangentWS  : TEXCOORD2;             float3 viewDirWS    : TEXCOORD3;             half4  fogFactorAndVertexLight     : TEXCOORD4; // x: fogFactor, yzw: vertex light             float4 shadowCoord  : TEXCOORD5;             float3 positionWS   : TEXCOORD6;             }; //vertex stage VertexOutput vert(VertexInput v)          {           VertexOutput o = (VertexOutput)0;              o.positionCS  = TransformObjectToHClip(v.positionOS.xyz);                      o.normalWS  = TransformObjectToWorldNormal(v.normalOS.xyz);           o.tangentWS = TransformObjectToWorldDir(v.tangentOS.xyz);           o.bitangentWS = cross(o.normalWS, o.tangentWS) * v.tangentOS.w * unity_WorldTransformParams.w;           o.positionWS = TransformObjectToWorld(v.positionOS.xyz);           o.viewDirWS = _WorldSpaceCameraPos.xyz - TransformObjectToWorld(v.positionOS.xyz);           o.uv = v.uv.xy * _BaseMap_ST.xy + _BaseMap_ST.zw;             //VertexPositionInputs vertexInput = GetVertexPositionInputs(v.positionOS.xyz);           half3 vertexLight = VertexLighting(o.positionWS, o.normalWS);           half fogFactor = ComputeFogFactor(o.positionCS.z);           #ifdef _MAIN_LIGHT_SHADOWS            //o.shadowCoord = GetShadowCoord(vertexInput);           o.shadowCoord = float4(0,0,0,0);        #endif            o.fogFactorAndVertexLight = half4(fogFactor, vertexLight);               return o;          }    //Based on PCPlatform. R/5bit, G/6bit, B/5bit, A/8bit R>G, G>A if using mobile, modified *2.0 - 1.0. //Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl         inline half3 UnpackNormal(half4 packednormal)         {           half3 normal;           normal.xy = packednormal.wy * 2 - 1;           normal.z = sqrt(1 - normal.x * normal.x - normal.y * normal.y);           return normal;          }          inline half3 TangentNormalToWorldNormal(half3 TangnetNormal, half3 T, half3  B, half3 N)          {            float3x3 TBN = float3x3(T, B, N);            TBN = transpose(TBN);            return mul(TBN, TangnetNormal);          } //pixel stage half4 frag(VertexOutput i) : SV_Target            { //default function define      float2 uv = i.uv; float3 viewDir = normalize(i.viewDirWS); i.shadowCoord = TransformWorldToShadowCoord(i.positionWS);  Light mainlight = GetMainLight(i.shadowCoord);               //texture sampling half4 diffuse = _BaseMap.Sample(sampler_BaseMap, i.uv) * _TintColor; half4 mask  = _MaskMap.Sample(sampler_BaseMap, i.uv); half3 bump = UnpackNormal(_BumpMap.Sample(sampler_BaseMap, i.uv)) * half3(1, _NormalInten, 1) ; float3 worldNormal = TangentNormalToWorldNormal(bump, i.tangentWS, i.bitangentWS, i.normalWS); float NdotL = saturate(dot(worldNormal, mainlight.direction)); float3 hv = normalize(mainlight.direction + viewDir); float NdotH = saturate(dot(hv, normalize(worldNormal))); //lighting half smoothness = mask.a * _Glossness ; half specular =  pow(NdotH, smoothness) * _Specular; half3 specularColor = specular * _SpecColor.rgb ;     //Environment Lighting. reflection probe does not work yet half3 reflectVector = reflect(-viewDir, worldNormal); half4 encodedIrradiance = SAMPLE_TEXTURECUBE_LOD(unity_SpecCube0, samplerunity_SpecCube0, reflectVector, smoothness); //half3 rfprobe = GlossyEnvironmentReflection(reflectVector,  smoothness, mask.g); half3 irradiance = DecodeHDREnvironment(encodedIrradiance, unity_SpecCube0_HDR); half3 diffuseColor = diffuse.rgb * NdotL * mainlight.color * mainlight.shadowAttenuation; //fresnel term   half fresnelTerm = saturate(dot(viewDir, worldNormal)); half3 rim = 1.0 - (pow(fresnelTerm, _FrensnelTerm)) ; half3 ambient = SampleSH(worldNormal) * 0.212; //additional light combine #ifdef _ADDITIONAL_LIGHTS uint pixelLightCount = GetAdditionalLightsCount(); for (uint lightIndex = 0u; lightIndex < pixelLightCount; ++lightIndex) { Light light = GetAdditionalLight(lightIndex, i.positionWS); half3 attenuatedLightColor = light.color * (light.distanceAttenuation * light.shadowAttenuation); diffuseColor += LightingLambert(attenuatedLightColor, light.direction, worldNormal) * 0.1 * mask.g; //specularColor += LightingSpecular(attenuatedLightColor, light.direction, worldNormal, viewDir, specular, smoothness) * mask.a;  } #endif #ifdef _ADDITIONAL_LIGHTS_VERTEX diffuseColor += i.fogFactorAndVertexLight.yzw;; #endif //combine light //diffuseColor += specularColor + irradiance * ambient *  mask.g * _OcclusionInten + rim * diffuse.r; diffuseColor +=  irradiance * ambient *  mask.g * _OcclusionInten + rim * diffuse.r; half4 color = half4(diffuseColor, diffuse.a); #if _ALPHATEST_ON clip(color.a - _Cutoff); #endif   //apply fog color.rgb = MixFog(color.rgb, i.fogFactorAndVertexLight.x); return color; } ENDHLSL   } Pass { Name "ShadowCaster" Tags{"LightMode" = "ShadowCaster"} Cull Back HLSLPROGRAM #pragma prefer_hlslcc gles #pragma exclude_renderers d3d11_9x #pragma target 2.0 #pragma vertex ShadowPassVertex #pragma fragment ShadowPassFragment #pragma shader_feature_local _ALPHATEST_ON #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl" CBUFFER_START(UnityPerMaterial) float4 _BaseMap_ST; float _Specular, _Glossness, _OcclusionInten, _EnviIntensity; half _Cutoff, _NormalInten, _FrensnelTerm; half4 _TintColor, _SpecColor; CBUFFER_END Texture2D _BaseMap; SamplerState sampler_BaseMap;  struct VertexInput  {  float4 positionOS : POSITION;  float4 normalOS : NORMAL;  #if  _ALPHATEST_ON  float2 uv     : TEXCOORD0;  #endif  };  struct VertexOutput  {  float4 positionCS : SV_POSITION;    #if  _ALPHATEST_ON  float2 uv     : TEXCOORD0;  #endif  };  VertexOutput ShadowPassVertex(VertexInput v)  {    VertexOutput o;    float3 positionWS = TransformObjectToWorld(v.positionOS.xyz);    float3 normalWS = TransformObjectToWorldNormal(v.normalOS.xyz);    o.positionCS = TransformWorldToHClip(ApplyShadowBias(positionWS, normalWS, _MainLightPosition.xyz));   #if _ALPHATEST_ON    o.uv = v.uv * _BaseMap_ST.xy + _BaseMap_ST.zw;    #endif    return o;  }  half4 ShadowPassFragment(VertexOutput i) : SV_TARGET  {    #if _ALPHATEST_ON  half alpha = _BaseMap.Sample(sampler_BaseMap, i.uv).a * _TintColor.a;  clip(alpha - _Cutoff);  #endif  return 0;  }    ENDHLSL } Pass { Name "DepthOnly" Tags{"LightMode" = "DepthOnly"}      Zwrite On ColorMask 0 Cull Back HLSLPROGRAM #pragma prefer_hlslcc gles #pragma exclude_renderers d3d11_9x #pragma target 2.0 #pragma vertex vert #pragma fragment frag #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl" CBUFFER_START(UnityPerMaterial) float4 _BaseMap_ST; float _Specular, _Glossness, _OcclusionInten, _EnviIntensity; half _Cutoff, _NormalInten, _FrensnelTerm; half4 _TintColor, _SpecColor; CBUFFER_END struct VertexInput { float4 vertex : POSITION; }; struct VertexOutput { float4 vertex : SV_POSITION; }; VertexOutput vert(VertexInput v) { VertexOutput o; o.vertex = TransformObjectToHClip(v.vertex.xyz); return o; } half4 frag(VertexOutput IN) : SV_TARGET { return 0; } ENDHLSL } } }
